What is LPG Bank

VOT (Vapor off Take Systems)

Cylinders are connected to the Manifold system in series, where LPG is withdrawn from the cylinder and is discharged to the system for usage. The vaporized LPG is then passed through 1st Stage & 2nd Stage Pressure Reducing Station. This type of system is normally recommended for Low rate of consumption.

LOT (Liquid off Take Systems)

Liquid Offtake (LOT) LPG Systems have become popular in commercial & Industrial usage of LPG. The system offers Strength of Bulk LPG Installation and easy functionality as that of Cylinder manifold. LOT LPS System withdraws Liquid LPG using the LOT valves.

Liquid Off-take Installations

in19kgs, 35kgs, 47.5kgs capacities.
                                      in 450 kg capacity.

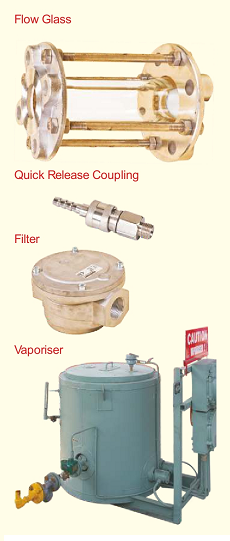

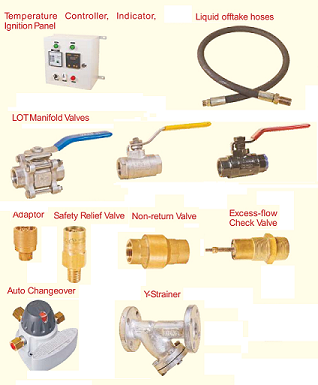

LOT+ Bulk LPG Fittings .



Gasor Vaporiser

GASOR Vapouriser are user friendly equipments designed to the customers operating needs and have an industrial experience to back the product for optimum use.

Electrically Heated

GASOR gives a continuous uninterrupted flow of gas at constant pressure and operates automatically between a turn down ratio ranging from 25% to 100% of the rated capacity.

GASOR Vapouriser are designed and manufactured to Pressure Vessel Codes and to the recommendation of NFPA 58 Guidelines. Vapouriser also known, as Evaporators are Equipment to convert Liquefied compressed gases from Liquid to gaseous state. GASOR Vapouriser offers the following models :

ELECTRICAL MODEL : for flow of 50 kgs/hr. 100 kgs/hr., 150 kgs/hr. 200 kgs/hr. & 300 kgs/hr.


Zimmer Vaporizers

Algas-SDI vaporizers are safe, simple and reliable thus allowing the LP-Gas professional and end user the peace of mind and freedom to focus on what they do best. These vaporizers are designed with decades of experience with LPG and various conditions all around the world. Electrically heated vaporiser with 40 kg/hr flow capacity.

LOT Installation sample layout drawing


LPG Pumps & Compressors

LPG PUMPS, LPG COMPRESSORS, ACCESSORIES for LPG tanker uploading, Bobtail, Auto gas, Cylinder filling, Trailer loading / unloading, Industrial Process and Vapor Recovery System Application.
